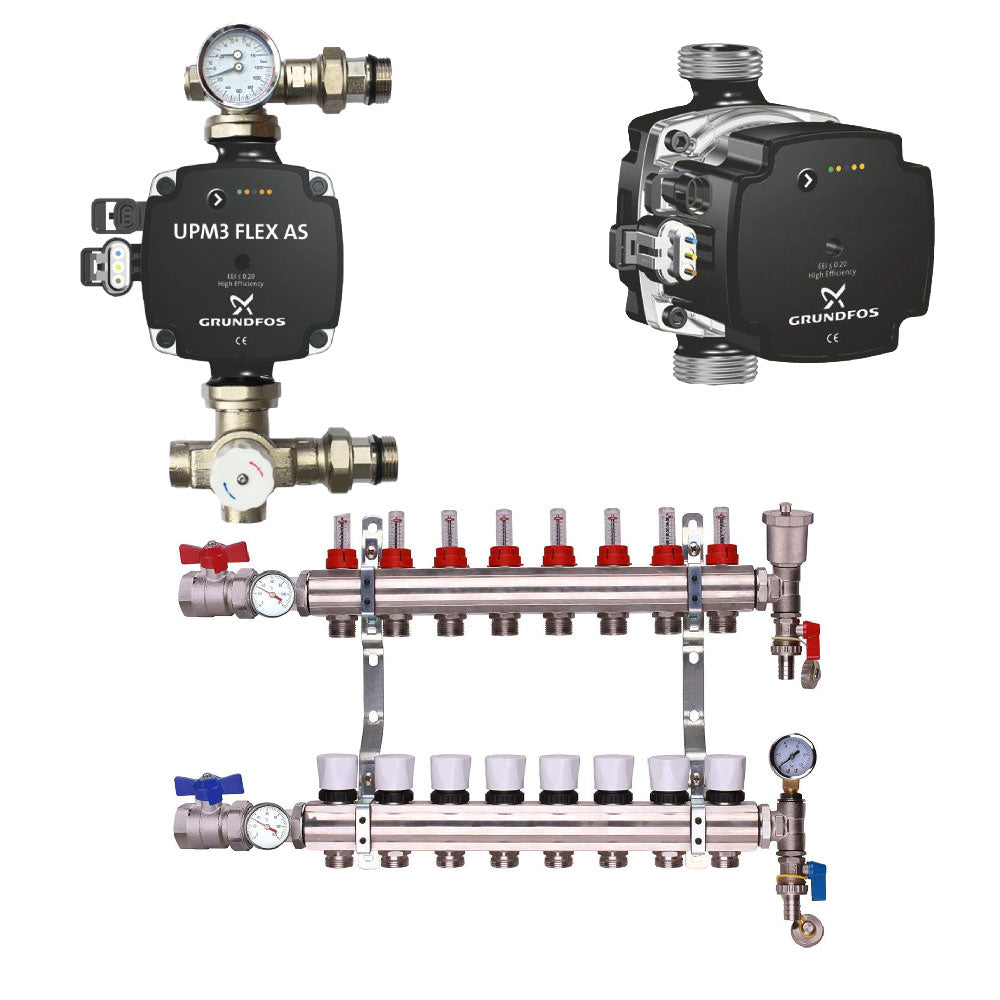

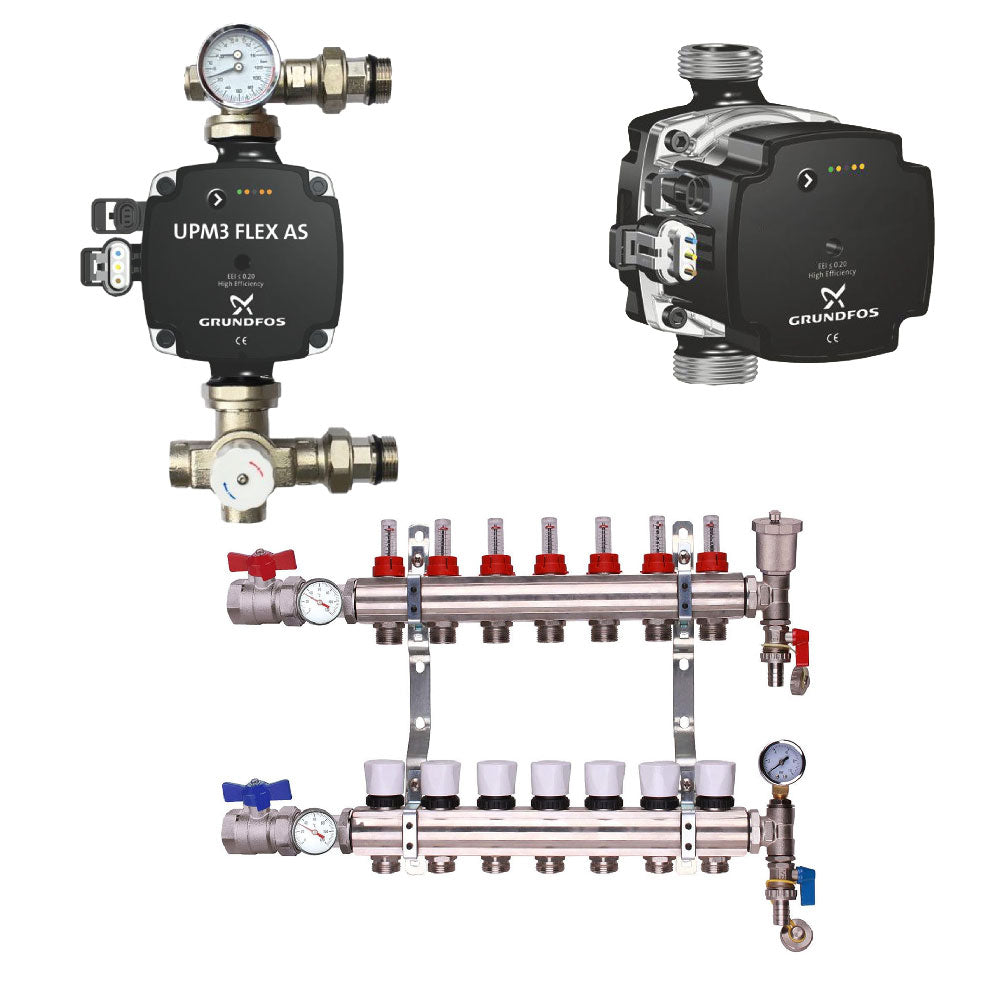

Underfloor Heating manifolds comes with:

“A” Rated Grundfos Pump Pack.

Items included:

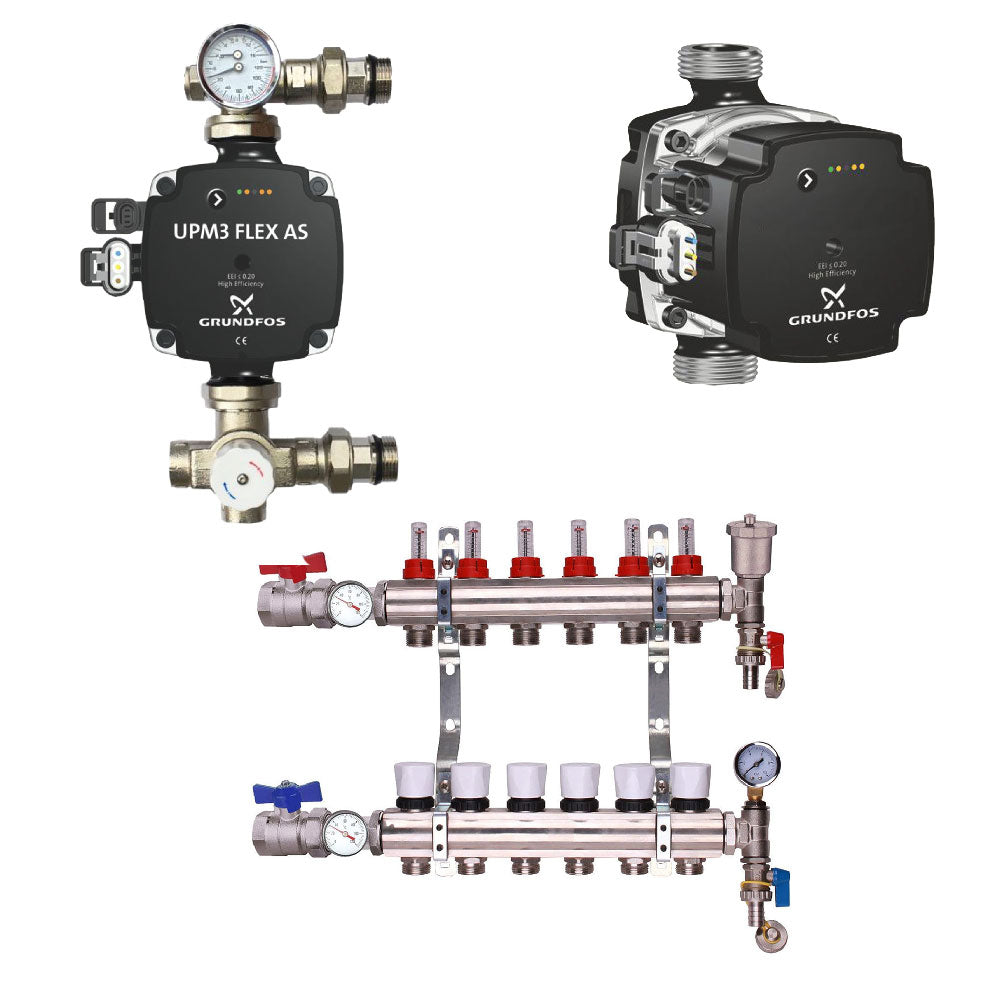

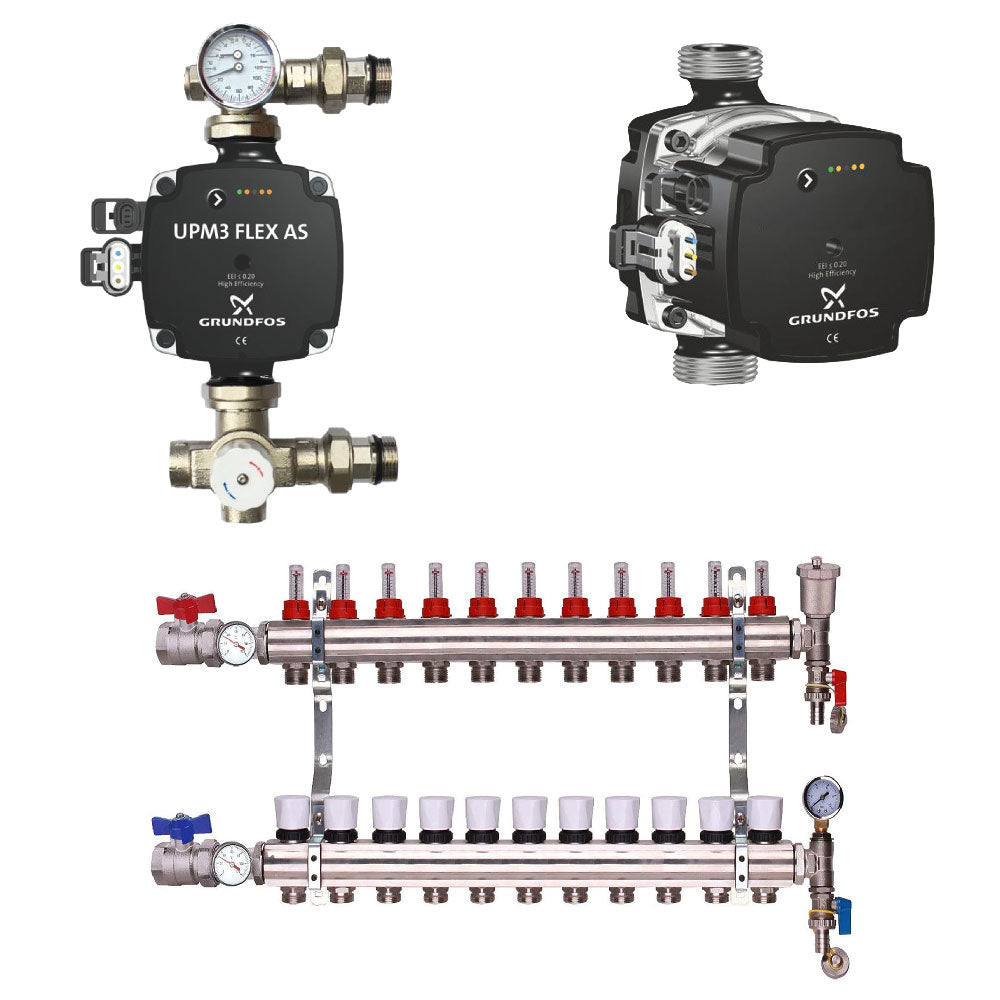

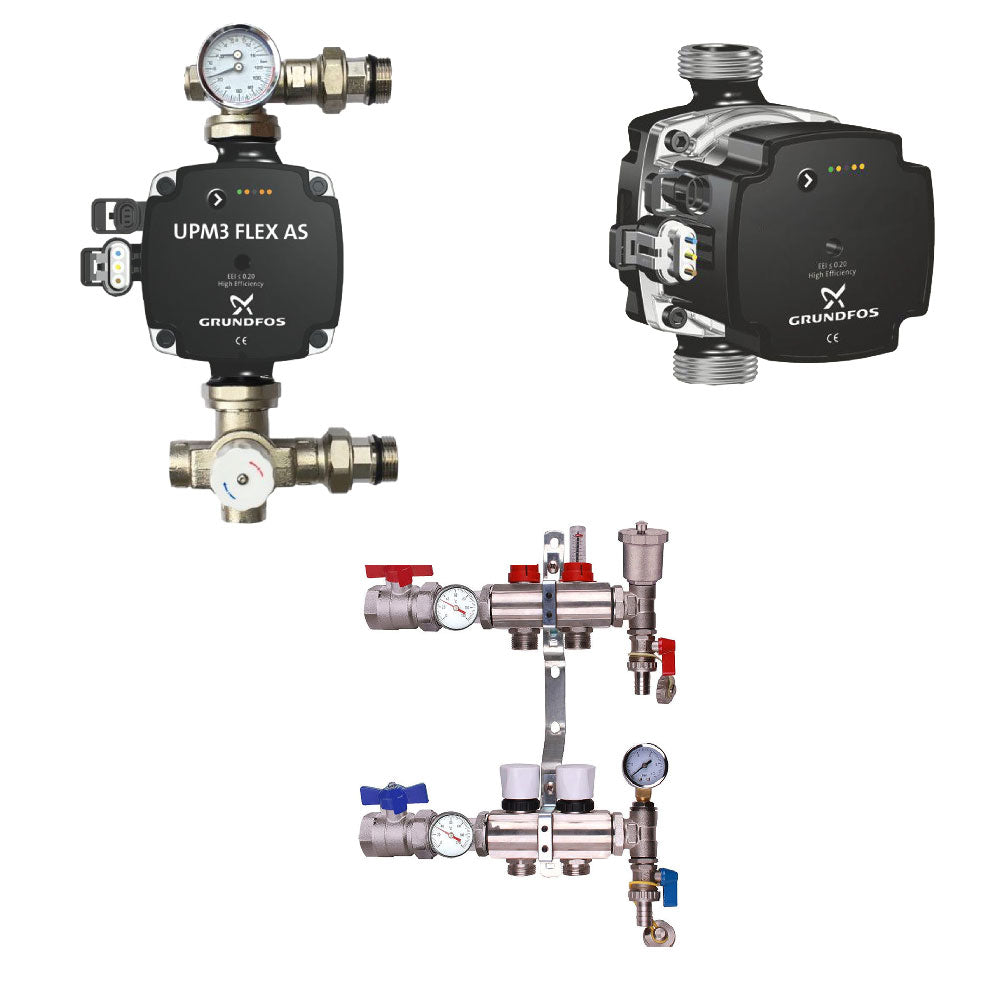

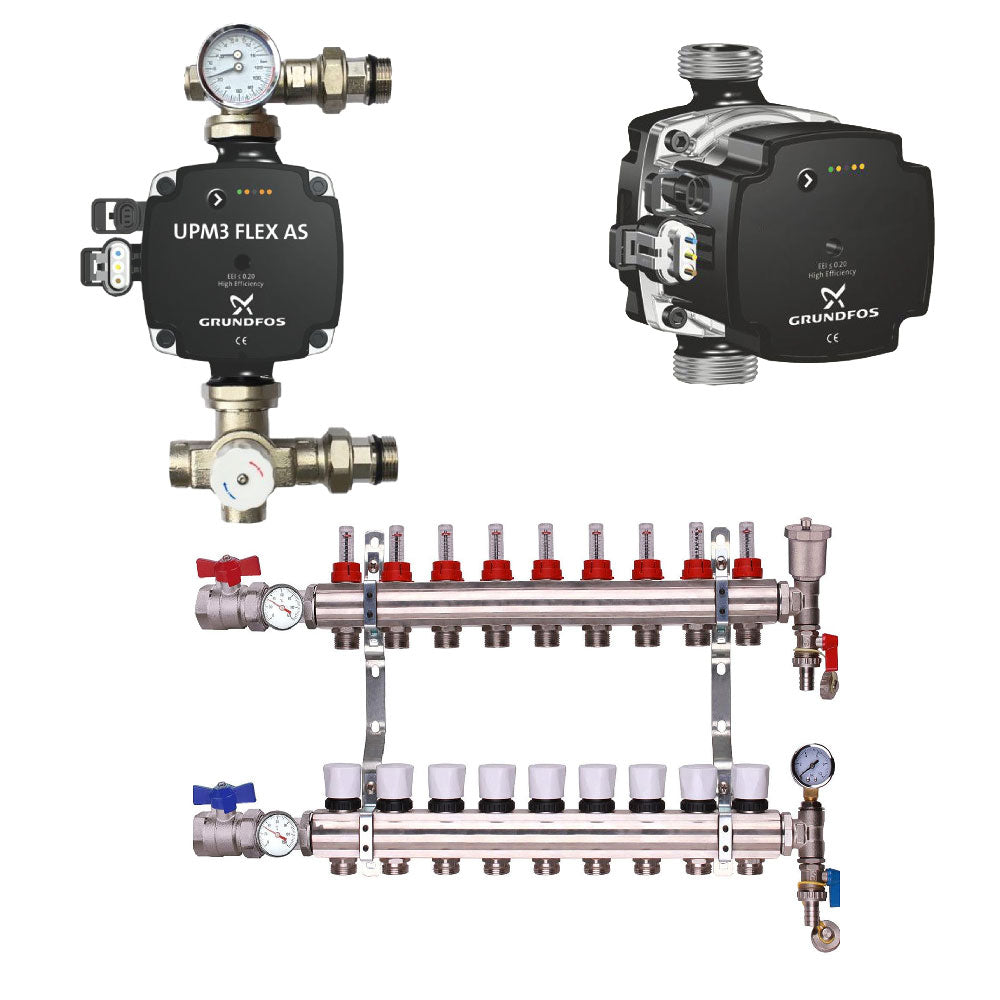

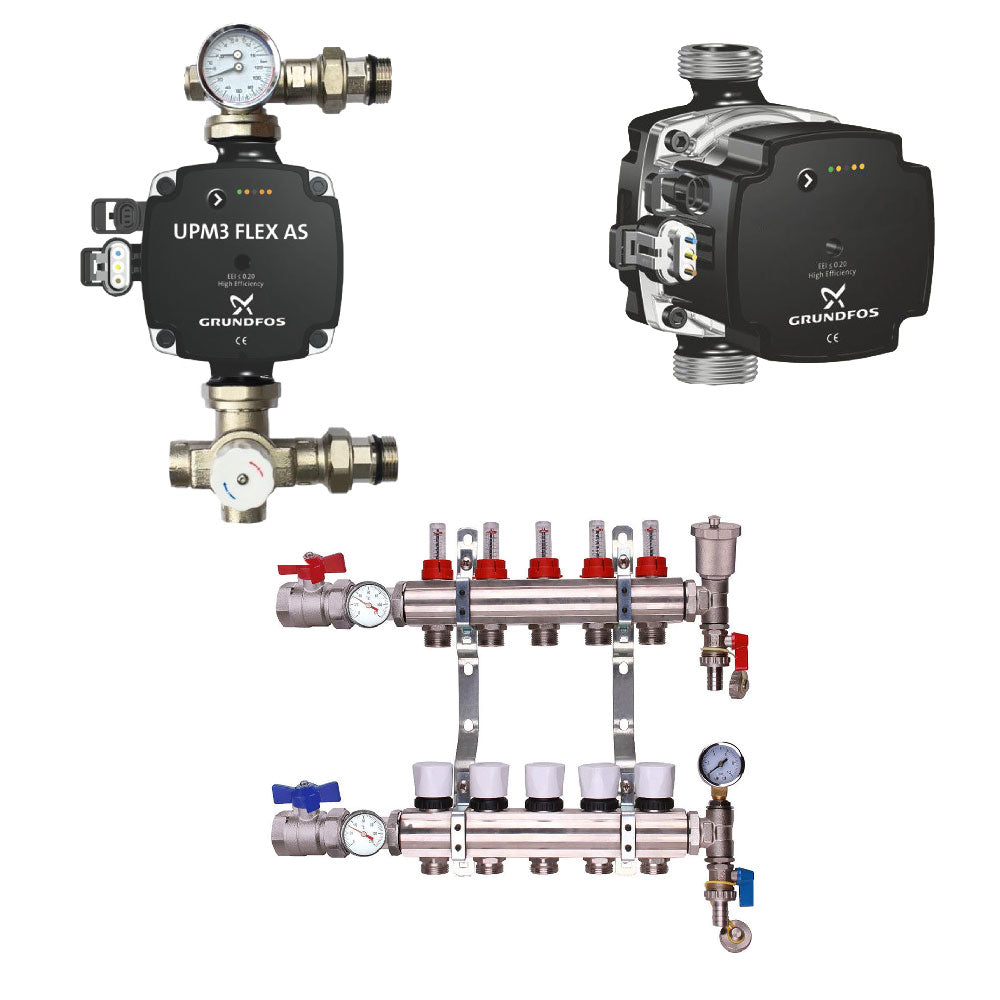

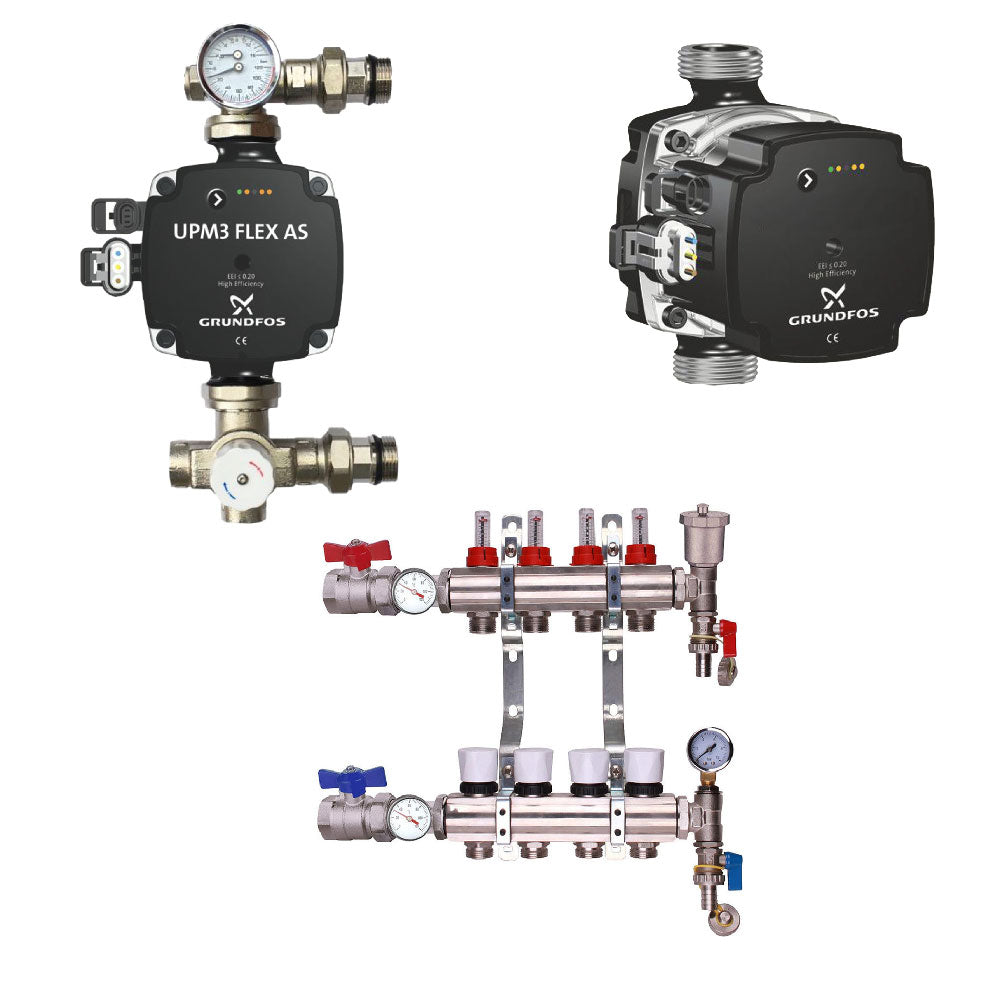

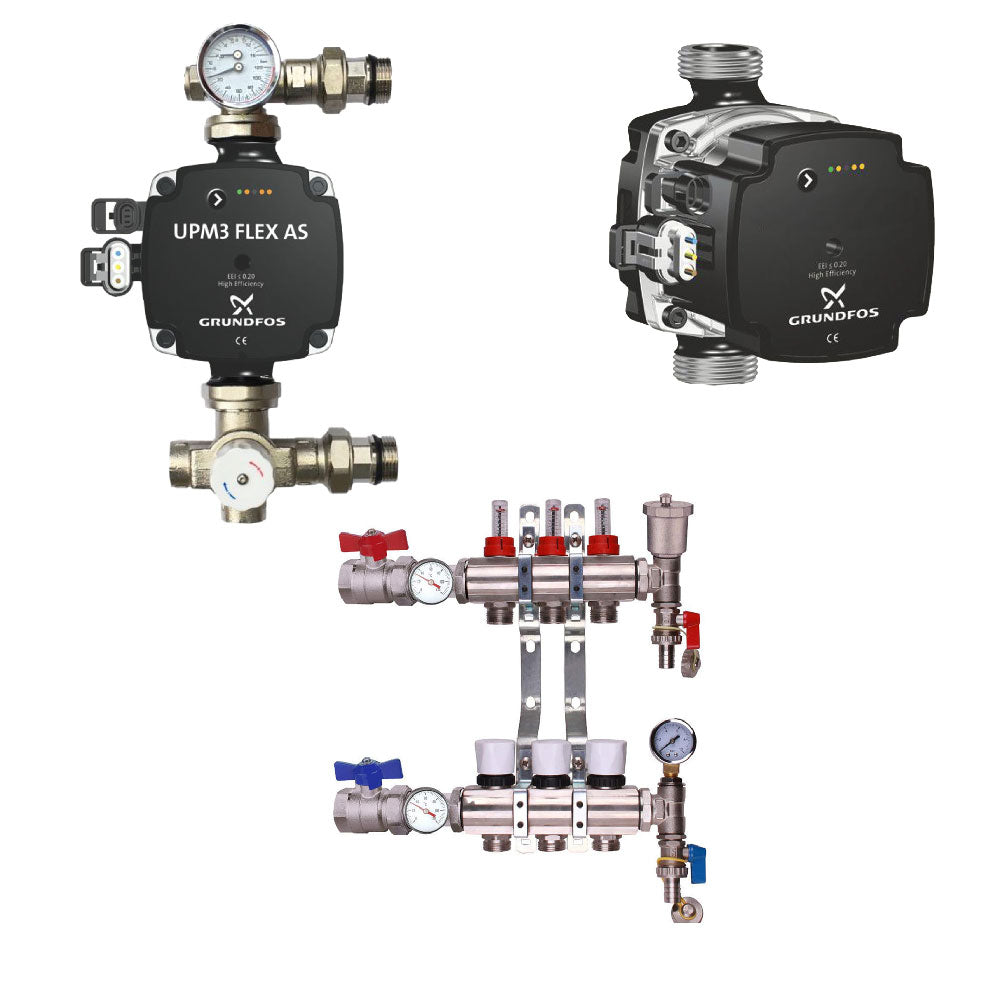

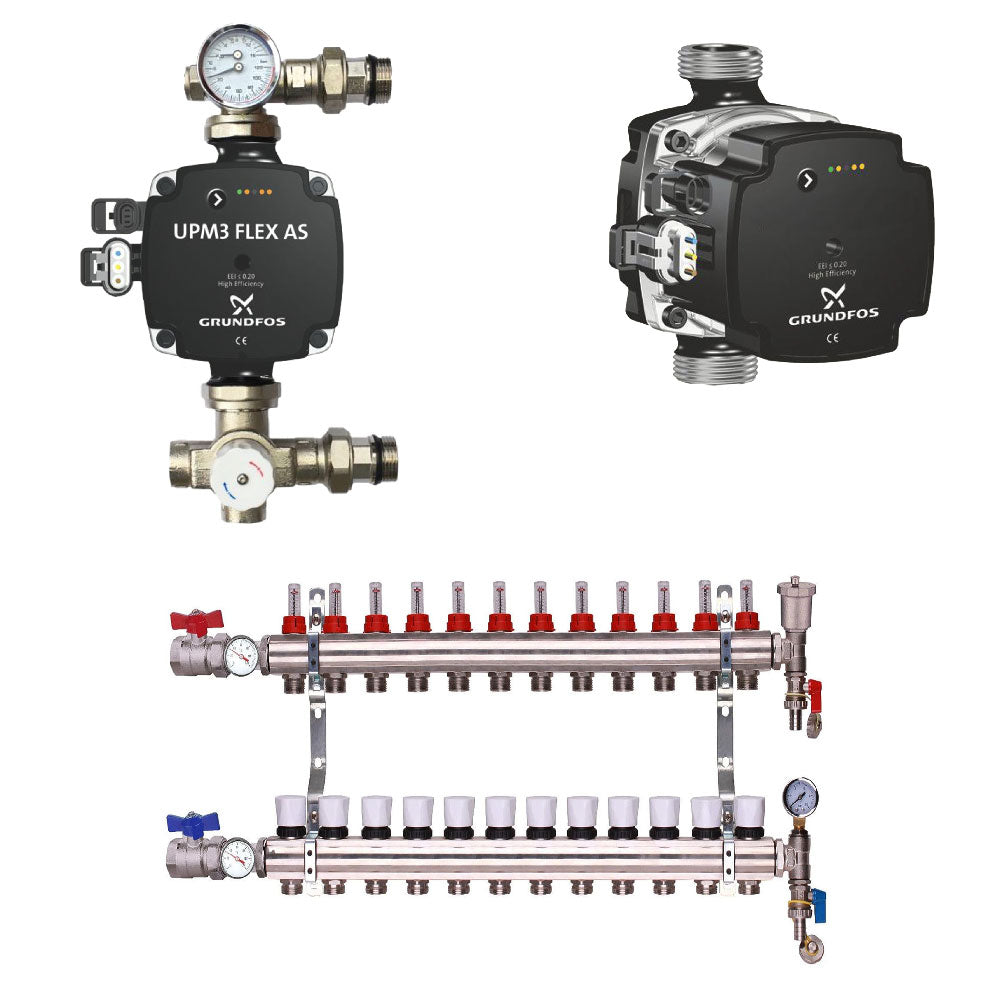

• 1 x pre-mounted manifold with flow meters
• 1 x end vent
• 1 x pressure gauge
• 2 x ball valves
• 2 x temp gauge (fitted to ball valves)
• Eurocones fitting (ex: 8 port 16 euros, 16mmx2mm)
• Pump station (thermostatic mixing valve)
• Brass/nickel plated push fittings, easy to install available with up to 12 ports.
• Supplied on a pre-mounted bracket.

CMax working pressure 3 bar max test pressure 10 bar.

Grundfos UPM3 A-rated pump has a thermostatic valve to control the flow temperature of water to the underfloor heating pipes.

Temperature range: 35C – 65CMax working pressure:

10 bar compression connections for ease of installation.

Our manifolds are for use on water underfloor heating systems.

These consist of two manifold bars, one for the flow and one for the return, complete with ball valves, drain/ filling valves and air vent. On the flow bar each port has a high-performance flow indicator, with isolator including an easy-to-read gauge-glass.

Each port on the return bar is equipped with an integral control valve and protection cap which allows the user to adjust the volume of water or can be removed to accept a Manifold Thermoelectric head.

Manifold dimensions:

Please add 150mm to the length when the pump and mixer are fitted.

Please see image 12 for key.

                                                                                                                                          A             B           C         D            E

2 circuit UFH manifold kit 320mm 210mm 50mm 276mm 90mm

3 circuit UFH manifold kit 320mm 210mm 50mm 326mm 90mm

4 circuit UFH manifold kit 320mm 210mm 50mm 376mm 90mm

5 circuit UFH manifold kit 320mm 210mm 50mm 426mm 90mm

6 circuit UFH manifold kit 320mm 210mm 50mm 476mm 90mm

7 circuit UFH manifold kit 320mm 210mm 50mm 526mm 90mm

8 circuit UFH manifold kit 320mm 210mm 50mm 576mm 90mm

9 circuit UFH manifold kit 320mm 210mm 50mm 626mm 90mm

10 circuit UFH manifold kit 320mm 210mm 50mm 676mm 90mm

11 circuit UFH manifold kit 320mm 210mm 50mm 726mm 90mm

12 circuit UFH manifold kit 320mm 210mm 50mm 776mm 90mm
